1988 · Sega · Japan · console

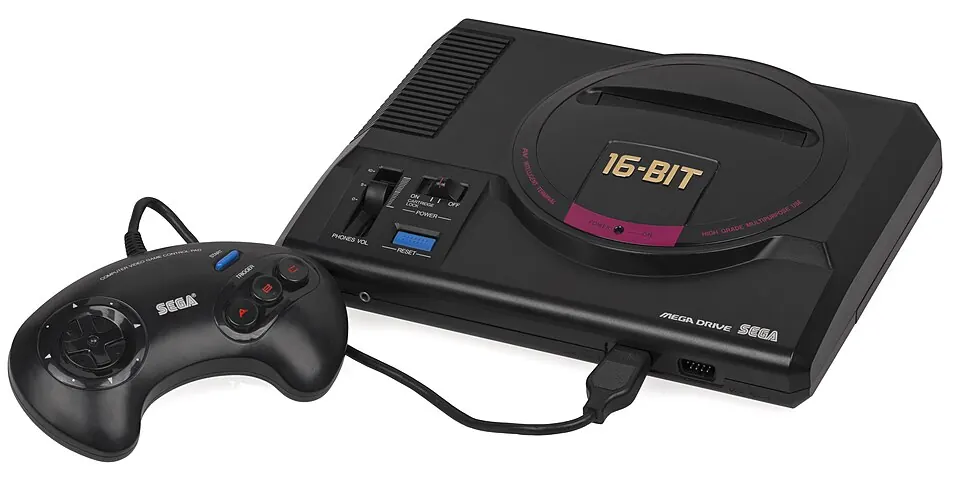

Sega Mega Drive / Genesis
Spearheaded by Tom Kalinske and an edgy marketing campaign, the Genesis brought the cool attitude of 1990s arcades into living rooms, dethroning Nintendo in…
Also sold as Sega Genesis
Essential Trivial to run ▶ Watch on YouTube ↗
Spearheaded by Tom Kalinske and an edgy marketing campaign, the Genesis brought the cool attitude of 1990s arcades into living rooms, dethroning Nintendo in North America during the height of the 16-bit Console Wars.
Yuzo Koshiro’s electronic house and techno soundtracks for Streets of Rage pushed the Yamaha YM2612 sound chip into club culture legends.
Under the hood
- CPU
- Motorola 68000 @ 7.67 MHz + Zilog Z80 coprocessor for audio
- Sound chip
- Yamaha YM2612 (6-channel FM synthesizer) + Texas Instruments SN76489 PSG
- Graphics
- VDP (Custom Texas Instruments derivative), 320 × 224, 64 simultaneous colors from 512 palette, 80 hardware sprites
- Media
- ROM Cartridges & Expansion Port for Sega CD
Hardware revisions
| Model | Years | What changed |
|---|---|---|
| MK-1601Genesis Model 1 ('High Definition Graphics' model) | 1989 onward | VA6/VA6.8 board revisions are collector-sought for a YM2612 op-amp change that gives noticeably better audio than earlier VA boards.; Known issue: Power switches known to go 'mushy' with age |
| MK-1631Genesis Model 2 (US) | 1993 | Cost-reduced redesign; 9-pin mini-DIN A/V port replaces the old RF+A/V ports; Known issue: Widely reported to have worse audio quality than Model 1 |
| MK-1631-50Mega Drive Model 2 (Europe)-50 = European PAL variant | 1993 | Same cost-reduced design as the US MK-1631 |
| MK-1461Genesis Model 3 | 1998 | The least common of the three Genesis models; a budget/cost-cut build, less desirable to collectors. |
What it cost
only about 6% of a month’s pay in 1994 · about $212 today
| US Genesis launch price ($189.99 with Altered Beast) |
$189.99 (1989)
only about 12% of a month’s pay · about $481 in today's money |
|---|---|
| Genesis Model 2 bundle with Sonic 2 ($99.99) | $99.99 (1994) |
| Mega Drive Japan launch (¥21,000) | ¥21,000 |
| Units sold | 30,750,000 30.75 million units official Sega sales (around 35M+ including third-party licensed variants). |
What it's worth now
Moderate $50–80 Model 1, $30–60 Model 2
Accessible hardware; a six-button controller is the preferred standard and adds $15–25 if not bundled. The rare Nomad portable is the pricey outlier.
A guide to collectibility, not a valuation — real prices depend on condition, completeness and demand.
Why it mattered
Yuzo Koshiro’s electronic house and techno soundtracks for Streets of Rage pushed the Yamaha YM2612 sound chip into club culture legends.
Emulating it today
| Emulators | Genesis Plus GX, BlastEm, Kega Fusion |
|---|---|
| Setup effort | Trivial to run (0 on this site's scale) |
| Controls | A standard modern controller covers the ordinary controls, though unusual accessories may need custom mapping. |
| Runs on a handheld | Yes |
Flawless plug-and-play emulation on Genesis Plus GX and PicoDrive with zero setup friction. The emulator names above are starting points, not a promise that every title or accessory behaves identically. Computer platforms usually add model selection, disk handling and keyboard setup even when CPU emulation itself is mature.
Firmware
This system needs no firmware file. Install an emulator, open a game, and it runs.
How many files you need: none to go and find. No separate firmware file is needed for an ordinary setup.
Firmware details checked 2026-08. Emulator requirements change — see Libretro documentation for the current list.
Where the software is
Preservation catalogues describe verified dumps; they do not grant permission to download commercial software. A curated, correctly matched set is easier to use than an undifferentiated archive.
Copyright: Commercial software remains copyrighted unless its owner explicitly released or relicensed it. Homebrew, public-domain programs and current reissues should be treated separately from abandoned commercial titles.
This site names preservation projects and explains what they are. It does not link to ROM downloads.
Where to start
- Sonic the Hedgehog 2 Platformer
Sonic & Tails, the Spin Dash, and the chemical plant zone—speed gaming defined.
- Streets of Rage 2 Beat 'em up
The greatest side-scrolling beat 'em up ever made, with Yuzo Koshiro’s club-banging techno OST.
- Gunstar Heroes Run & Gun Action
Treasure’s debut showcase of explosive multi-jointed boss sprites and combo weapons.
- Phantasy Star IV: The End of the Millennium JRPG
The crowning achievement of 16-bit Sega RPGs with manga panel cinematic storytelling.
- Castlevania: Bloodlines Action Platformer
Michiru Yamane’s score and European globetrotting with John Morris and Eric Lecarde.
- Shinobi III: Return of the Ninja Master Action Platformer
Flawless ninja acrobatics, horse riding, and surf combat.
- Contra: Hard Corps Run & Gun Action
Brutal, non-stop boss fights with 4 distinct characters and branching endings.
- Sonic 3 & Knuckles Platformer
The massive locked-on epic with save batteries and Hyper Sonic transformation.
- Thunder Force IV (Lightening Force) Shoot 'em up
Technosoft’s heavy metal shoot-'em-up with staggering multi-layer parallax scrolling.
- Comix Zone Action Beat 'em up
Torn into the comic pages, fighting sketch mutants panel-by-panel.
- Golden Axe Beat 'em up
- Altered Beast 1988 Beat 'em up
The verdict
"Genesis does what Nintendon't." Blazing 16-bit 68000 processing speed, gritty Yamaha FM synth audio, and legendary franchises (Sonic 2, Streets of Rage 2, Gunstar Heroes, Shinobi III).
The strongest software can be rewarding, but original controls and setup assumptions may matter more than screenshots suggest.
- Worth it if
- Players curious about sega home consoles and willing to learn how the original machine worked.
- Not for
- Anyone who wants a large, instantly accessible library and no model, firmware or control decisions.
Scored 5/5 for fun today and 5/5 for historical importance. Those two scores decide the label at the top — a machine can matter enormously and still be no fun.
Read more & watch
This page is 75% complete against the facts we try to record for every system. Gaps are shown as gaps.
